DNC Festo Type Air Cylinder Kit Gasket / Adjustable Buffer With Spray Paint Cover

Prius pneumatic Company
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

DNC Festo Type Air Cylinder Kit Gasket / Adjustable Buffer With Spray Paint Cover

Brand Name : PRIUS,XINYI or OEM

Model Number : DNC kits

Place of Origin : Ningbo,China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 20000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

name : DNC cylinder kit

Material : Aluminum

MOQ : 10PCS

Speed Range : 50~800mm/s

Bore : 32mm~320mm

Port Size : M5X0.8/G1/8"

Contact Now

ISO15552 DNC Pneumatic Air Cylinders Assembly Kits Festo Type Spray Paint Cover

Specification

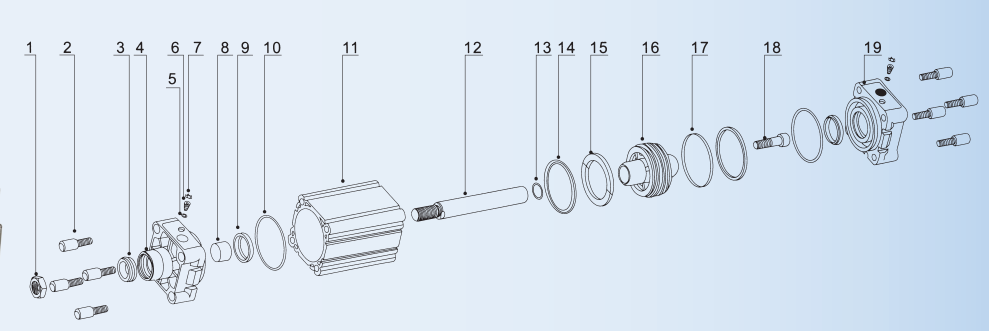

NO. Designation Material NO. Designation Material
1 Nut Carbon Steel 11 Barrel(Without) Hard anodized aluminum
2 Profile Bolt Carbon Steel 12 Piston Rod(Without) S45C Hard chrome carbon steel
3 Front Cover Seal PUR 13 Rod O-ring NBR
4 Front Cover Aluminum Alloy 14 Piston Seal NBR
5 O-ring NBR 15 Magnet (Optional) RbFeb
6 Adjustable Screw 16 Piston Aluminum Alloy
7 Block Slip 17 Wear Ring PA66
8 Self Lubricating bearing PTFE+Brass 18 Hex Socket Screw Carbon Steel
9 Cushion Seal NBR 19 Back Over Aluminum Alloy
10 Cover O-ring NBR

DNC Festo Type Air Cylinder Kit Gasket / Adjustable Buffer With Spray Paint Cover
