Brand Name : PRIUS,XINYI or OEM
Model Number : TN
Place of Origin : Ningbo,China
MOQ : 5pcs
Price : negotiation
Payment Terms : T/T, L/C, Western Union,Paypal
Supply Ability : 20000pcs per month
Delivery Time : 10~15 working days
Packaging Details : bag+box+catons+pallet
name : double acting double rod cylinder
Working Medium : Air
Working Pressure : 1-9.0Kgf/cm²
Pressure : 10.50Kgf/cm²
Temperature Range : -5-70℃
Speed Range : 100~500mm/s
Buffer Type : Adjustable Buffer
Action Type : Double acting

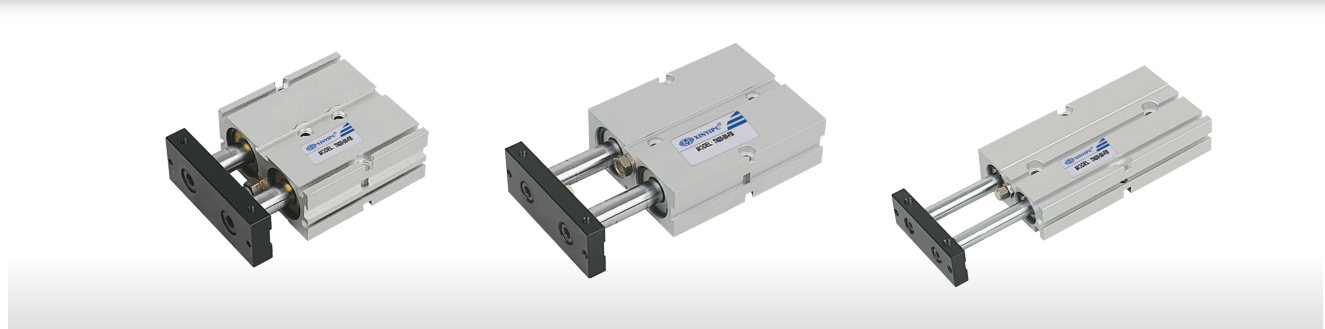

13.50Kgf / Cm² TN Series Dual Rod Cylinder Double Acting With Adjustable Buffer
Airtac type TN double shaft double acting Pneumatic air cylinder Bore size 10mm-32mm e.g. TN20-50-S with magnet and Guided rod plate
Quick Detail:
* TN Double rod air cylinder with Guided rod plate airtac interchange.
* High precision make sure linear moving excellently
* Good performance in distortion-resistance, twisting-resistance
* With slot on cylinder for mounting sensors
* Design to bear side load performance
* Multi-position mounting hole easily for installation.
* With magnet and rubber cushion
* Piston rod #45(ASTM-1045) steel chrome-plated
* Stainless steel piston rod is available
* With self-lubricating bearing,lubrication free
* Bore size 10mm,16mm,20mm,25mm,32mm,40mm

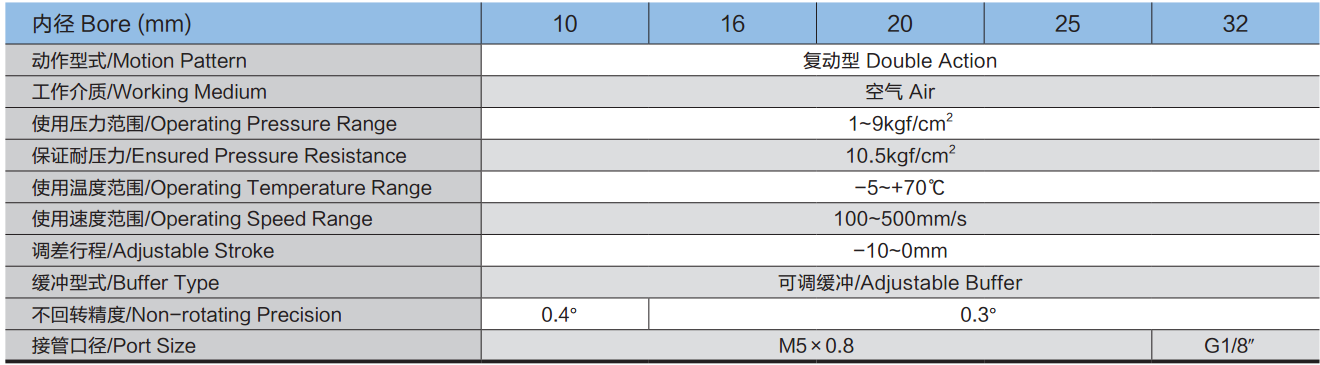

Specifiction
Bore (mm) | 10 | 16 | 20 | 25 | 32 | |
Motion Pattern | Double Action | |||||
Working Medium | Air | |||||
Operating Pressure Range | 1~9kgf/cm2 | |||||
Ensured Pressure Resistance | 10.5kgf/cm2 | |||||
Operating Temperature Range | -5~+70℃ | |||||
Operating Speed Range | 100~500mm/s | |||||
Adjustable Stroke | -10~0mm | |||||
Buffer Type | Adjustable Buffer | |||||
Non-rotating Precision | 0.4° | 0.3° | ||||
Port Size | M5×0.8 | G1/8″ |
Ordering Code

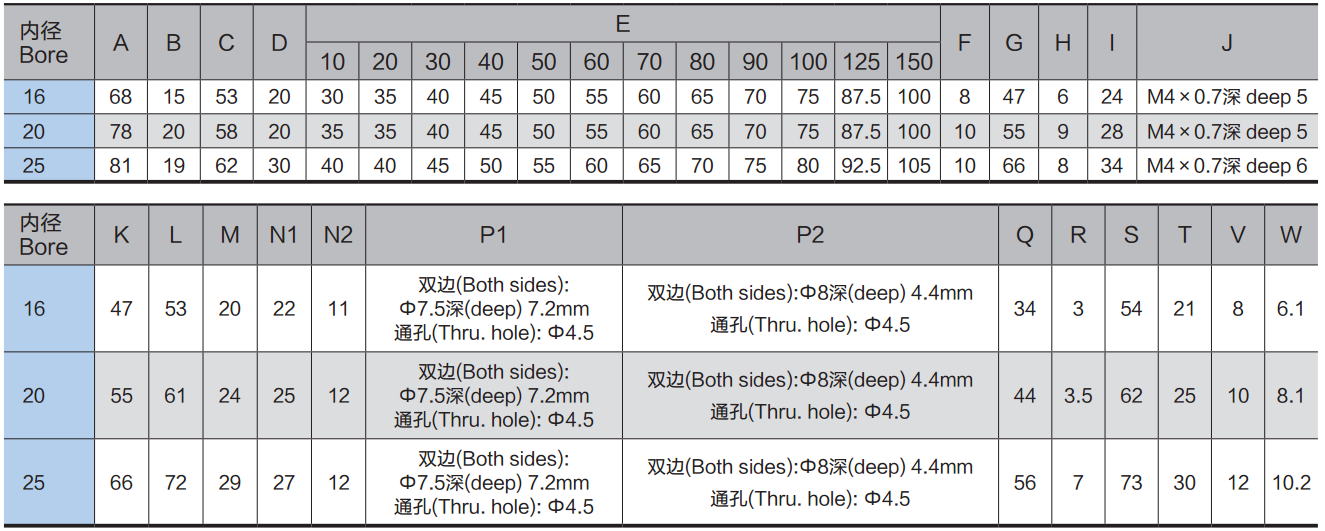

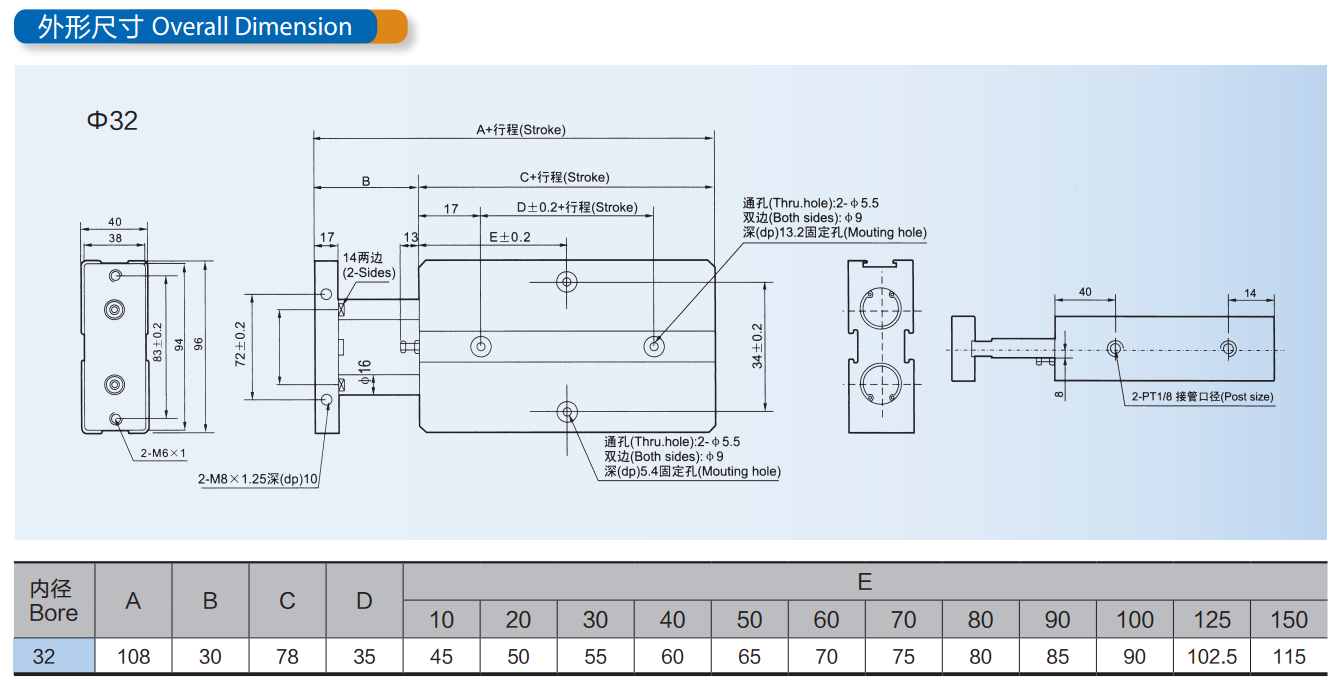

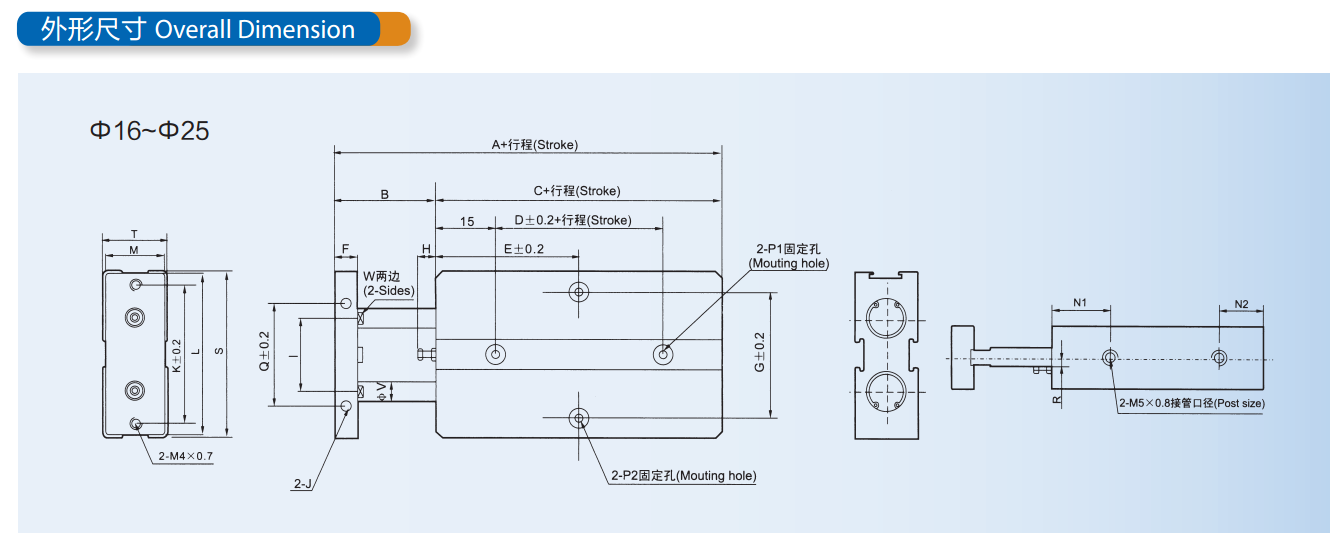

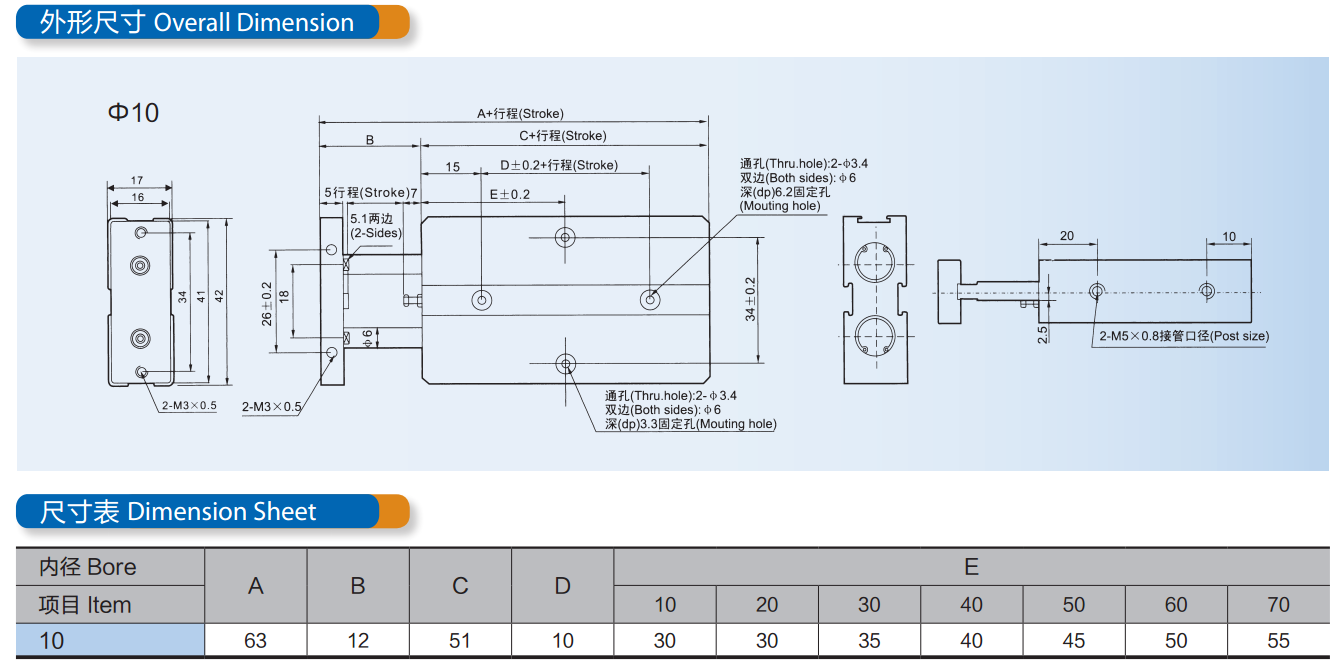

Overall Dimension
![]() |
